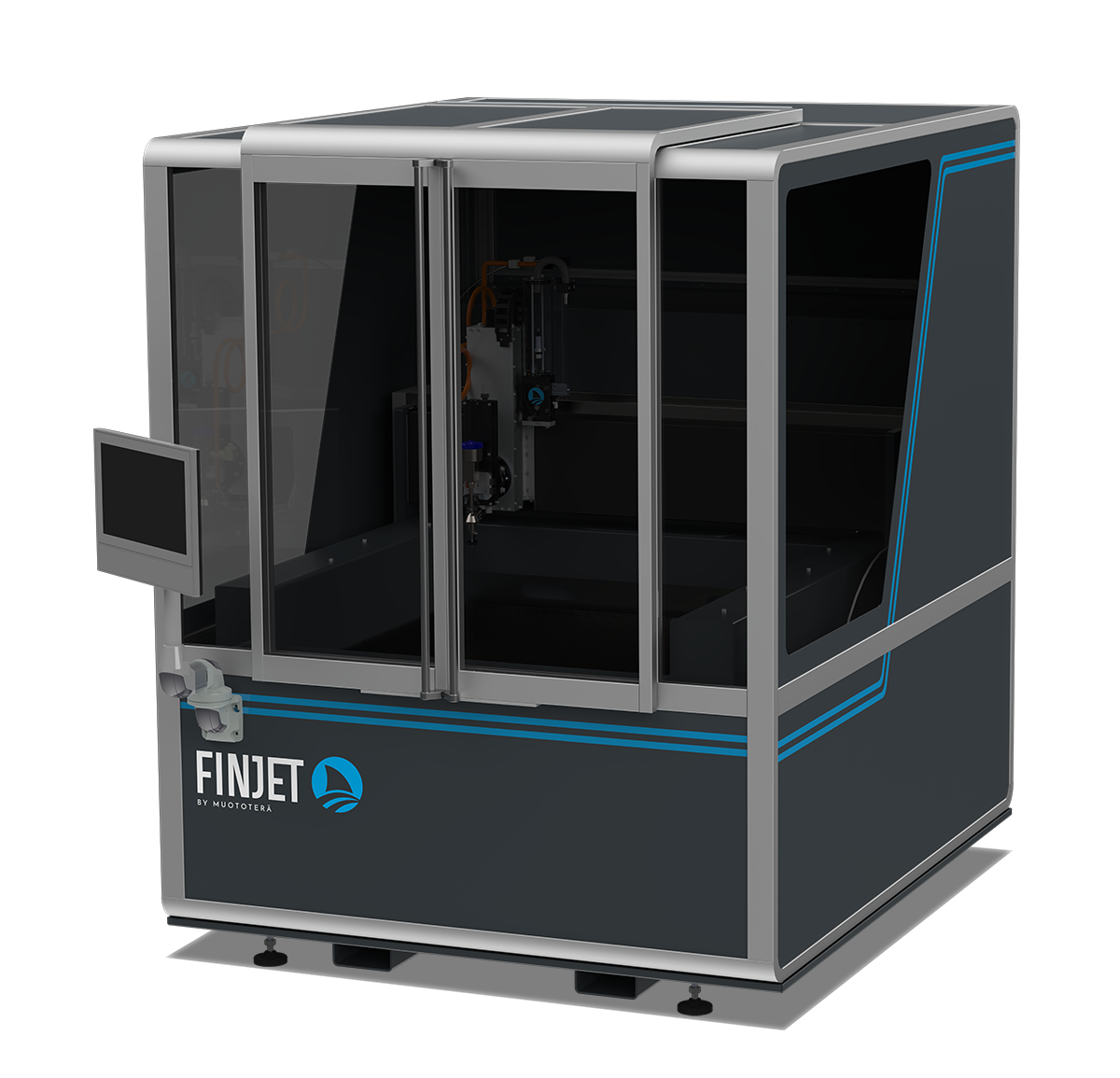

Compact & capsulated waterjet cutting machine

In FinJet S models, the movement is executed with Ø 30 mm precision ball screws, which achieve a movement speed of 15m / min. High-quality B&R (ABB) servomotors are equipped with absolute measurement, which allows the machine to be started without the need for extra reference run. The bearings of the sleds are always mounted on precision guides with four bearings and at sufficient distances to eliminate vibration. The machine’s mechanics are designed for durability and longevity in all conditions.

Since abrasive waterjet cutting machines are always exposed to at least abrasive and water, protection must be designed accordingly. In FinJet S models, the X-axis is always protected by a tight round bellows. The Y-movement is protected by a tight rubber lip and the machine frame is covered to withstand extreme conditions. The machine frame is designed so that it can be walked on, if needed, for easy operation and maintenance.

Electrical and automation design on all FinJet waterjet cutting machines are planned and executed by Muototerä’s own personnel. This allows optimum compatibility between mechanical and automation components. A good waterjet cutting machine is made from quality components, but it is not enough on its own. All parts must work together seamlessly. The objective of Muototerä is always to make the waterjet cutting machines to perform better than the sum of their parts. In practice, this means collaborative design. In other words, mechanical and automation design are executed simultaneously for best results. Electric cabinets on FinJet S models are equipped with effective cooling, which makes the electrical and automation components more durable and the waterjet cutting machine less prone to failures. The machine is controlled by Muototerä’s own interface for waterjet cutting. The HMI (Human Machine Interface) is a 21.5 ”Full HD touchscreen with a powerful 1.91GHz processor. The user interface has been designed based on the user experience so that it is simple yet powerful, offering all the features needed for effective waterjet cutting.

High pressure components play a critical role in waterjet cutting. As it is a high pressure device (3800 – 6200 bar), the high pressure components are subjected to extremely heavy stress. In addition to the self-made components, Muototerä uses components from KMT Waterjet. High-quality components guarantee the reliability of the machine at all pressure levels. All FinJet waterjet cutting machines can be connected to any high-pressure pump, including old ones already at the client’s site. Muototerä is an official distributor of KMT High Pressure Pumps and a Premium OEM Partner. Our high pressure pump product range can be found here
